Technical specifications

Type Of Media

Gases

Flow measuring principle

Thermal

Series range

For 0.014 mln/min - 11000 m3n/h

Accuracy

±0.5% Rd plus ±0.1% FS

Repeatability

<±0.2% Rd (or <±0.04% FS whichever is greater)

Max. Pressure bar(g)

700

Operating Temperature

-10…+70°C; 0...+50°C for ATEX CAT3, KCs, Class1 Div 2

Ingress Protection

IP65

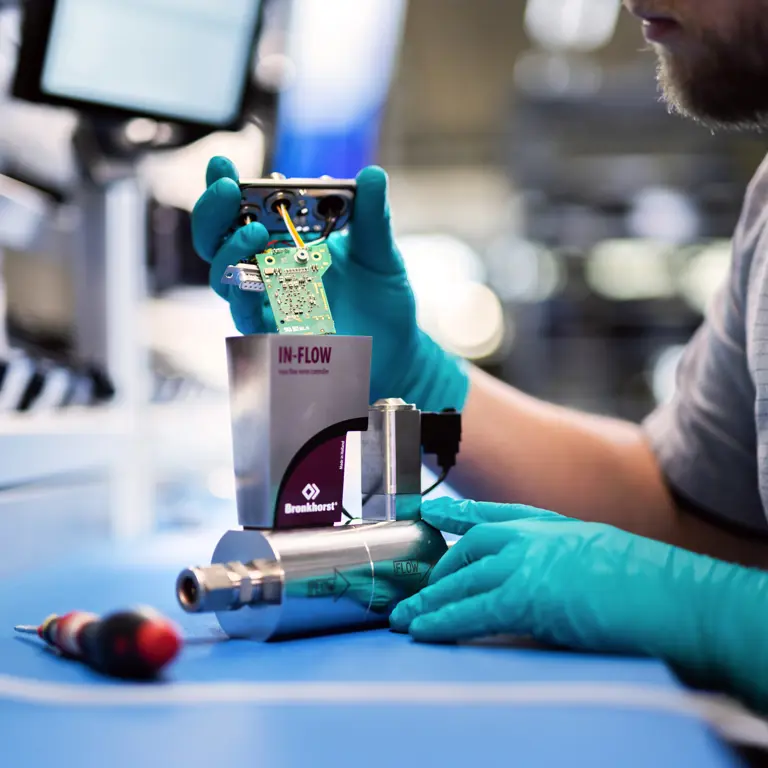

IN-FLOW including Low-ΔP-FLOW models

These rugged IP65-styled flow instruments are well suited for industrial environments. The series includes 'high-flow' models suitable for gas flows up to 11.000 m3n/h and low pressure drop versions as well.

Search for a model

F-100DI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.2…10 mln/min
max. 0.4…20 mln/min

10 bar(g)

Downloads & specifications
F-101DI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.42…21 mln/min
max. 0.042…2.1 ln/min

10 bar(g)

Downloads & specifications
F-101EI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.028…1.4 ln/min
max. 0.24…12 ln/min

10 bar(g)

Downloads & specifications
F-102DI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.28…14 ln/min
max. 0.5…25 ln/min

10 bar(g)

Downloads & specifications
F-102EI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.17…8.5 ln/min
max. 1…50 ln/min

10 bar(g)

Downloads & specifications
F-103DI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.8… 40 ln/min
max. 3…150 ln/min

10 bar(g)

Downloads & specifications
F-103EI
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.9…45 ln/min
max. 4…200 ln/min

10 bar(g)

Downloads & specifications
F-106AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,4…20 m3n/h
max. 4…200 m3n/h

40 bar(g)

Downloads & specifications
F-106BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 10…500 m3n/h

40 bar(g)

Downloads & specifications
F-106CI
Industrial Style Thermal Mass Flow Meter for Gases

min. 2…100 m3n/h
max. 20…1000 m3n/h

40 bar(g)

Downloads & specifications
F-106DI
Industrial Style Thermal Mass Flow Meter for Gases

min. 3.6…180 m3n/h
max. 36…1800 m3n/h

40 bar(g)

Downloads & specifications
F-106EI
Industrial Style Thermal Mass Flow Meter for Gases

min. 8…400 m3n/h
max. 80…4000 m3n/h

40 bar(g)

Downloads & specifications
F-106FI
Industrial Style Thermal Mass Flow Meter for Gases

min. 14…700 m3n/h
max. 140…7000 m3n/h

40 bar(g)

Downloads & specifications
F-106GI
Industrial Style Thermal Mass Flow Meter for Gases

min. 22…1100 m3n/h
max. 220…11000 m3n/h

40 bar(g)

Downloads & specifications
F-106xD
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.2…10 m3n/h
max. 20…1000 m3n/h

10 bar(g)

Downloads & specifications
F-107AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,4…20 m3n/h
max. 4…200 m3n/h

40 bar(g)

Downloads & specifications
F-107BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 10…500 m3n/h

40 bar(g)

Downloads & specifications
F-107CI
Industrial Style Thermal Mass Flow Meter for Gases

min. 2…100 m3n/h
max. 20…1000 m3n/h

40 bar(g)

Downloads & specifications
F-107DI
Industrial Style Thermal Mass Flow Meter for Gases

min. 3.6…180 m3n/h
max. 36…1800 m3n/h

40 bar(g)

Downloads & specifications
F-107xD
Mass Flow Meter for low pressure drop or corrosive gas service

min. 0.2…10 m3n/h
max. 20…1000 m3n/h

10 bar(g)

Downloads & specifications
F-110CI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.014…0.7 mln/min
max. 0.06…9 mln/min

100 bar(g)

Downloads & specifications
F-111AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,4…20 ln/min
max. 2…100 ln/min

100 bar(g)

Downloads & specifications
F-111BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,16…8 mln/min
max. 0,16…25 ln/min

100 bar(g)

Downloads & specifications
F-112AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,8…40 ln/min
max. 1,4…250 ln/min

100 bar(g)

Downloads & specifications
F-113AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 4…200 ln/min
max. 8…1600 ln/min

100 bar(g)

Downloads & specifications
F-116AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.3…15 m3n/h
max. 4…200 m3n/h

100 bar(g)

Downloads & specifications
F-116BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 7.5…375 m3n/h
max. 10...500 m3n/h on request

100 bar(g)

Downloads & specifications
F-117AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.4…20 m3n/h
max. 4…200 m3n/h

100 bar(g)

Downloads & specifications
F-117BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 10…500 m3n/h

100 bar(g)

Downloads & specifications
F-117CI
Industrial Style Thermal Mass Flow Meter for Gases

min. 2…100 m3n/h
max. 20…1000 m3n/h

100 bar(g)

Downloads & specifications
F-117DI
Industrial Style Thermal Mass Flow Meter for Gases

min. 3,6…180 m3n/h
max. 36…1800 m3n/h

100 bar(g)

Downloads & specifications
F-120MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,2…10 mln/min
max. 0,3…15 mln/min

200 bar(g)

Downloads & specifications
F-121MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,3…15 mln/min
max. 0,4…20 ln/min

200 bar(g)

Downloads & specifications
F-122MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,3…15 ln/min
max. 5…250 ln/min

200 bar(g)

Downloads & specifications
F-123MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 4…200 ln/min
max. 25…1250 ln/min

200 bar(g)

Downloads & specifications
F-126AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.3…15 m3n/h
max. 4…200 m3n/h

200 bar(g)

Downloads & specifications
F-126BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 7.5…375 m3n/h
max. 10...500 m3n/h on request

200 bar(g)

Downloads & specifications
F-130MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,2…10 mln/min
max. 0,3…15 mln/min

400 bar(g)

Downloads & specifications
F-131MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,3…15 mln/min
max. 0,4…20 ln/min

400 bar(g)

Downloads & specifications
F-132MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0,3…15 ln/min
max. 5…250 ln/min

400 bar(g)

Downloads & specifications
F-133MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 4…200 ln/min
max. 25…1250 ln/min

400 bar(g)

Downloads & specifications
F-136AI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.3…15 m3n/h
max. 4…200 m3n/h

400 bar(g)

Downloads & specifications
F-136BI
Industrial Style Thermal Mass Flow Meter for Gases

min. 1…50 m3n/h
max. 7.5…375 m3n/h
max. 10...500 m3n/h on request

400 bar(g)

Downloads & specifications
F-141MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 0.3…15 mln/min
max. 2…100 ln/min

700 bar(g)

Downloads & specifications
F-142MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 4…100 ln/min

max. 5…250 ln/min

700 bar(g)

Downloads & specifications
F-143MI
Industrial Style Thermal Mass Flow Meter for Gases

min. 4…200 ln/min
max. 25…1250 ln/min

700 bar(g)

Downloads & specifications
F-200CI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.014…0.7 mln/min
max. 0.06…9 mln/min

64 bar(g)

Downloads & specifications
F-200DI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.2…10 mln/min
max. 0.4…20 mln/min

10 bar(g)

Downloads & specifications
F-201AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0,4…20 ln/min
max. 2…100 ln/min

64 bar(g)

Downloads & specifications
F-201CI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0,16…8 mln/min
max. 0,5…25 ln/min

64 bar(g)

Downloads & specifications
F-201DI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.42…21 mln/min
max. 0.042…2.1 ln/min

10 bar(g)

Downloads & specifications
F-201EI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.028…1.4 ln/min
max. 0.24…12 ln/min

10 bar(g)

Downloads & specifications
F-202AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.8…40 ln/min
max. 5…250 ln/min

64 bar(g)

Downloads & specifications
F-202DI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.28…14 ln/min
max. 0.5…25 ln/min

10 bar(g)

Downloads & specifications
F-202EI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.17…8.5 ln/min
max. 1…50 ln/min

10 bar(g)

Downloads & specifications
F-202EI
Mass Flow Controller for low pressure drop or corrosive gas service

min. 0.17…8.5 ln/min
max. 1…50 ln/min

10 bar(g)

Downloads & specifications
F-203AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 4…200 ln/min
max. 33…1670 ln/min

64 bar(g)

Downloads & specifications
F-206AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.3…15 m3n/h
max. 4…200 m3n/h

64 bar(g)

Downloads & specifications
F-206BI
Industrial Style Thermal Mass Flow Controller for Gases

min. 1…50 m3n/h
max. 7.5…375 m3n/h
max. 10...500 m3n/h on request

100 bar(g)

Downloads & specifications
F-210CI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0,014…0,7 mln/min
max. 0,18…9 mln/min

100 bar(g)

Downloads & specifications
F-211AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0,4…20 ln/min
max. 2…100 ln/min

100 bar(g)

Downloads & specifications
F-211CI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.16…8 mln/min
max. 0.5…25 ln/min

100 bar(g)

Downloads & specifications
F-212AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.8…40 ln/min
max. 5…250 ln/min

100 bar(g)

Downloads & specifications
F-213AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 4…200 ln/min
max. 33…1670 ln/min

100 bar(g)

Downloads & specifications
F-216AI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.3…15 m3n/h
max. 4…200 m3n/h

100 bar(g)

Downloads & specifications
F-216BI
Industrial Style Thermal Mass Flow Controller for Gases

min. 1…50 m3n/h
max. 7.5…375 m3n/h
max. 10...500 m3n/h on request

100 bar(g)

Downloads & specifications
F-221MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.3…15 mln/min
max. 0.4…20 ln/min

200 bar(g)

Downloads & specifications
F-230MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.2…10 mln/min
max. 10...500 mln/min

400 bar(g)

Downloads & specifications
F-231MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 10…500 mln/min
max. 0.2…10 ln/min

400 bar(g)

Downloads & specifications
F-232MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.2…10 ln/min
max. 2…100 ln/min

400 bar(g)

Downloads & specifications
F-240MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 0.2…10 mln/min
max. 10…500 mln/min

700 bar(g)

Downloads & specifications
F-241MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 10…500 mln/min
max. 0,2…10 ln/min

700 bar(g)

Downloads & specifications
F-242MI
Industrial Style Thermal Mass Flow Controller for Gases

min. 2…10 ln/min
max. 2…100 ln/min

400 bar(g)

Downloads & specifications
