Technical specifications
Type Of Media
Dry, clean and non-corrosive gases
Flow measuring principle
Thermal
Series range
For 0.2 mln/min - 5 ln/min
Accuracy
< ±1.5% Rd + ±0.5% FS
Repeatability
for flows < 20 mln/min: < ±0.2% FS; for flows > 20 mln/min: < ±0.5% Rd
Max. Pressure bar(g)
10
Operating Temperature
5…+50°C
Ingress Protection
IP40
IQ+FLOW models
Ultra compact flow meters and controllers ideally suited for use in desktop equipment where space is limited and for equipment manufacturers. The flow sensors are based on MEMS Technology.
Search for a model
min. 0.2...10 mln/min
Max. 0.1...5 ln/min
10 bar(g)
min. 0.2...10 mln/min
max. 0.1...5 ln/min
10 bar(g)
min. 0.2...10 mln/min
max. 0.1...5 ln/min
10 bar(g)
min. 0.2...10 mln/min
max. 0.1...5 ln/min
10 bar(g)
Downloads
Manuals
-
PDF
Manual IQ- FLOW (9.17.045)
-
PDF
Manual RS232 interface (9.17.027)
-
PDF
Quick Start Guide IQ-FLOW (9.17.177)
Certificates
-
PDF
EU Declaration of Conformity instruments
-
PDF
EU Declaration of Conformity RoHS
Brochures
-
PDF
Brochure IQ-FLOW
Where is the IQ+FLOW used?
Flow controllers in gas chromatography
Discover Bronkhorst's compact flow controllers, offering stable and precise gas flow control for gas chromatography.
Read more
Flow controllers for ICP analysis
Optimize ICP analysis with Bronkhorst's compact flow controllers. Enhance accuracy and stability with precise gas flow control.
Read more
Accessories
IN-LINE gas filters
Compact in-line filters for gas flow applications
8

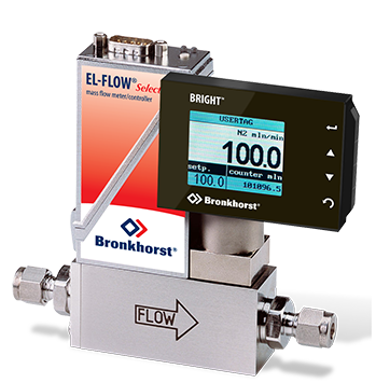

BRIGHT
Compact Local Readout and Control Module
4
Control valves
For a wide variety of gas, liquid or pressure control applications
17
