Technical specifications
Pressure rating
100 bar
Max. heating temperature
200°C
Ingress Protection
IP40
Material wetted parts
Stainless steel 316L or comparable
Max. capacity (based on water) - liquid
From 2 g/h - 1200 g/h
Max. capacity - gas
From 4 ln/min - 100 ln/min
CEM working principle
EXPLANATION VIDEO
Do you want to learn more about the ins & outs of this series? In this animation you lean about the operation principles.

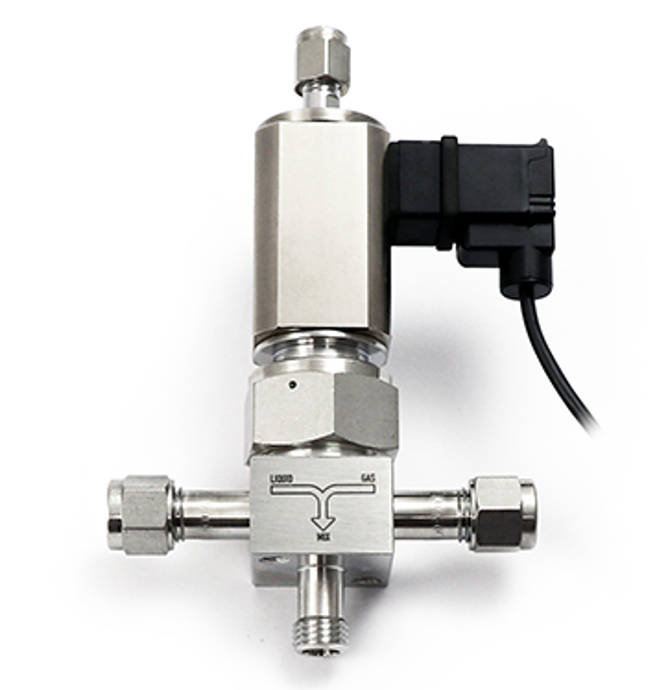

Mixing valves for evaporation purposes
Bronkhorst® mixing valves are usually supplied as an integral part of a Control Evaporator Mixer (CEM). They may also be supplied separately as a replacement part or for a particular set-up that does not require a heating chamber for complete evaporation of the liquid which is injected the carrier gas flow.
Mixing valve models W-001/W-002/W-003 have a pressure capability of 100 bar (1500 psi) and a purge connection for easy elimination of air or gas. They are directly operated by a magnetic coil with IP65 (weatherproof) housing and are closed when de-energized (Normally Closed).
Downloads
Manuals
-
PDF
Manual CEM (9.17.126)
Hook-up diagrams
-
PDF
Hook Up Diagram E 8000 CEM W 10Xa 202A (9.16.109)
-
PDF
Hook Up Diagram CEM W101A/W102A/W202A (9.16.086)
Certificates
-
PDF
EU Declaration of Conformity CEM 230V
Brochures
-
PDF
Brochure CEM
